Beginner's Guide to Networking Essentials in Linux

Networking is at the heart of Linux system administration and DevOps. Whether you’re managing servers, debugging applications, or configuring firewalls, understanding Linux networking is essential

Networking is at the heart of Linux system administration and DevOps. Whether you’re managing servers, debugging applications, or configuring firewalls, understanding Linux networking is essential. In this guide, we’ll cover the core networking fundamentals in Linux, along with some common commands to help you get started.

Understanding Network Interfaces

A network interface is the connection between your Linux machine and the network (wired, wireless, or virtual).

Loopback (lo) → Used for local communication within the system (127.0.0.1).
Ethernet (eth0, enp0s3, etc.) → Physical wired interfaces.
Wireless (wlan0, wlp2s0, etc.) → Wireless interfaces.
Virtual Interfaces → Created by containers, VMs, or tunneling (e.g., docker0, tun0).

Check interfaces:

ip link show

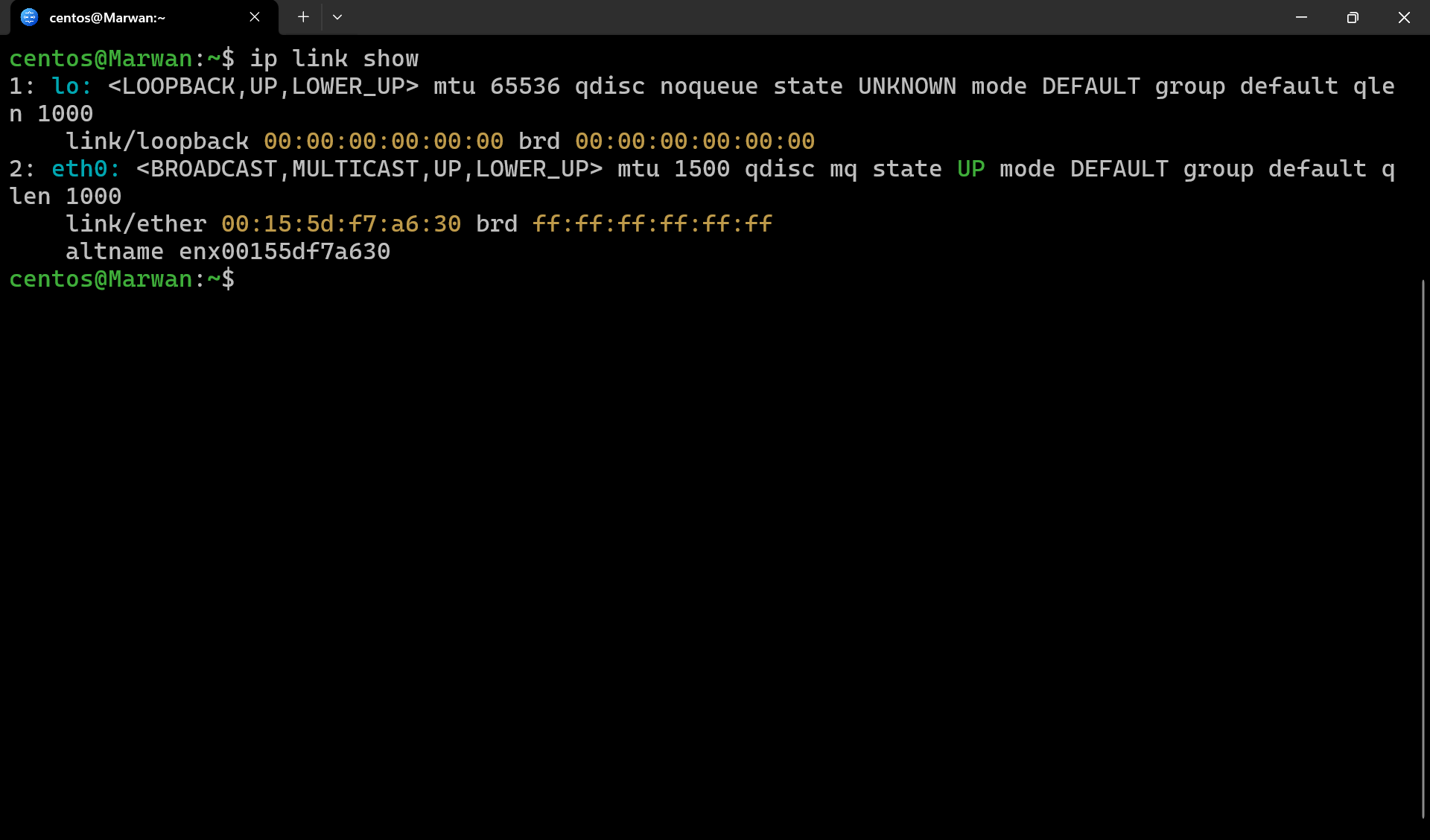

Terminal output of ip link show listing loopback and eth0 interfaces

IP Addressing Basics

Every network interface needs an IP address to communicate.

IPv4: e.g., 192.168.1.10
IPv6: e.g., fe80::1a2b:3c4d:5e6f:7g8h

View IP addresses:

ip addr show

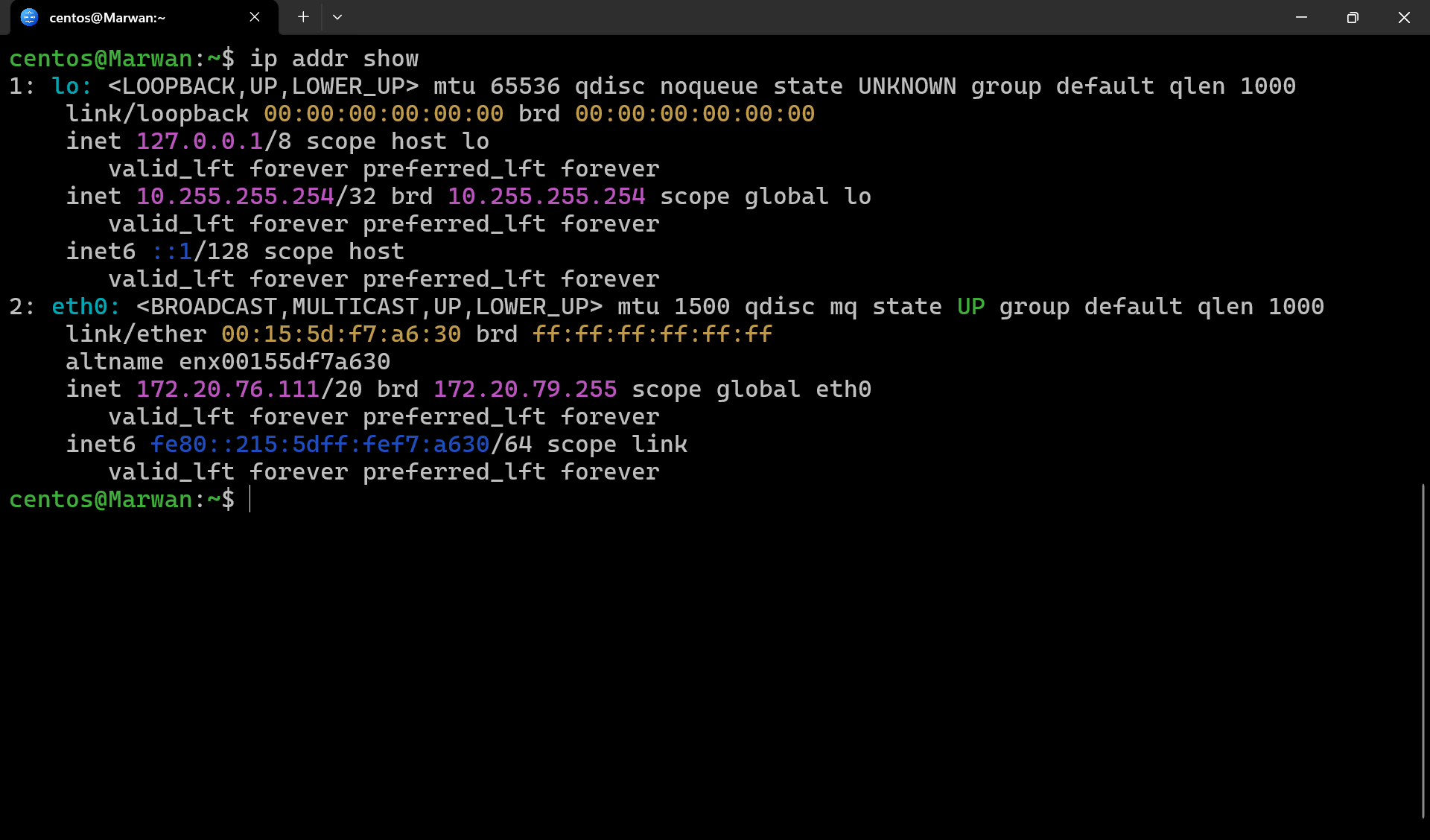

Terminal output of ip addr show with loopback and eth0 IP addresses

Assign an IP manually:

sudo ip addr add 192.168.1.50/24 dev eth0

Routing and Gateways

Routing determines how packets leave your machine and reach other networks.

Default Gateway → Router that forwards traffic outside your local network.

Check routing table:

ip route show

Example output:

default via 192.168.1.1 dev eth0
192.168.1.0/24 dev eth0 proto kernel scope link src 192.168.1.50

DNS (Domain Name System)

DNS resolves hostnames (like google.com) to IP addresses.

Config file: /etc/resolv.conf
Example:

nameserver 8.8.8.8
nameserver 1.1.1.1

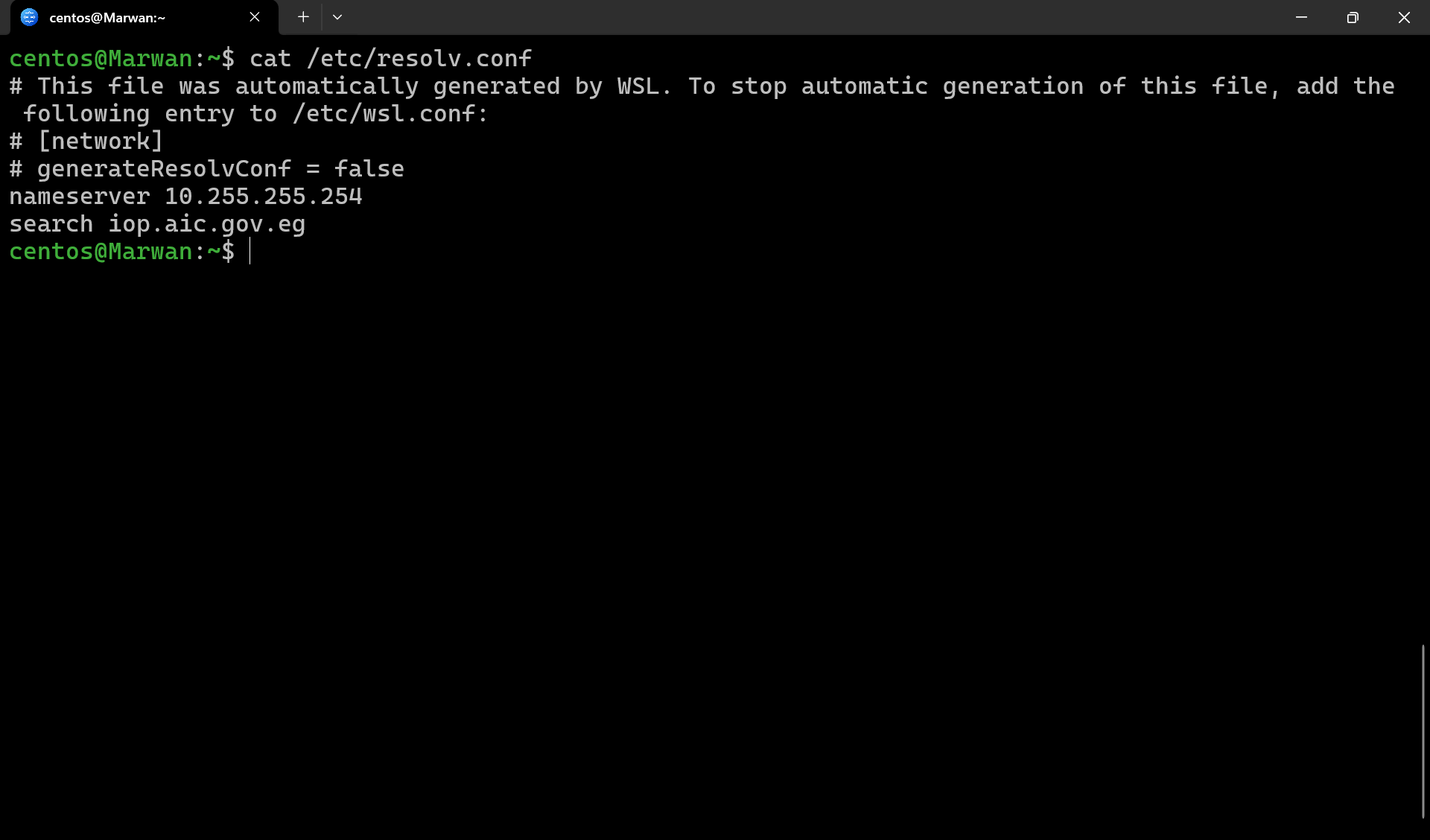

Terminal showing resolv.conf contents with nameserver and search domain

Test DNS resolution:

dig google.com
nslookup github.com

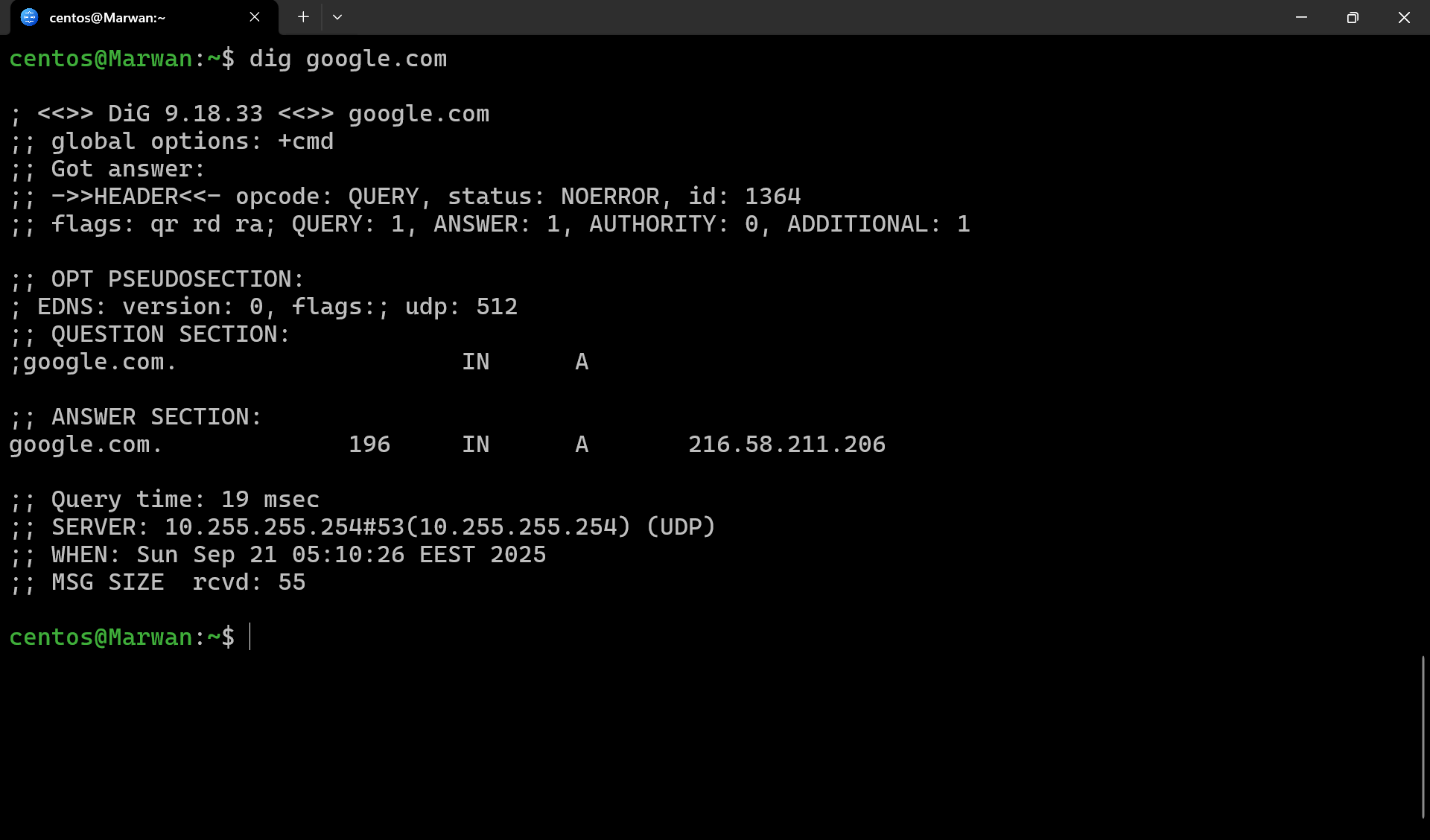

Terminal output of dig for google.com showing resolved IP address

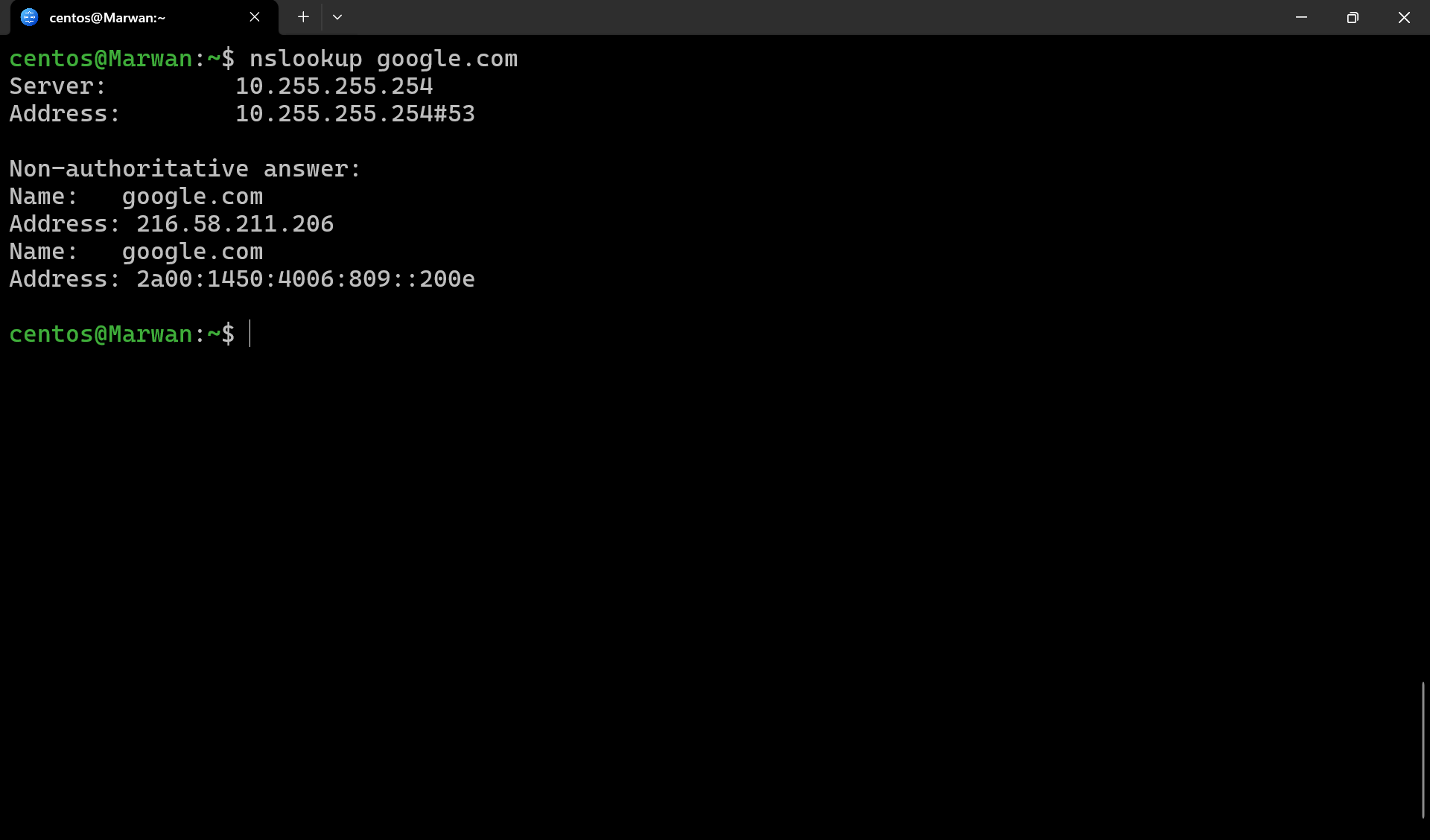

Terminal output of nslookup for google.com showing IPv4 and IPv6 addresses

Essential Networking Commands

Here are the most important tools for troubleshooting and managing networking in Linux:

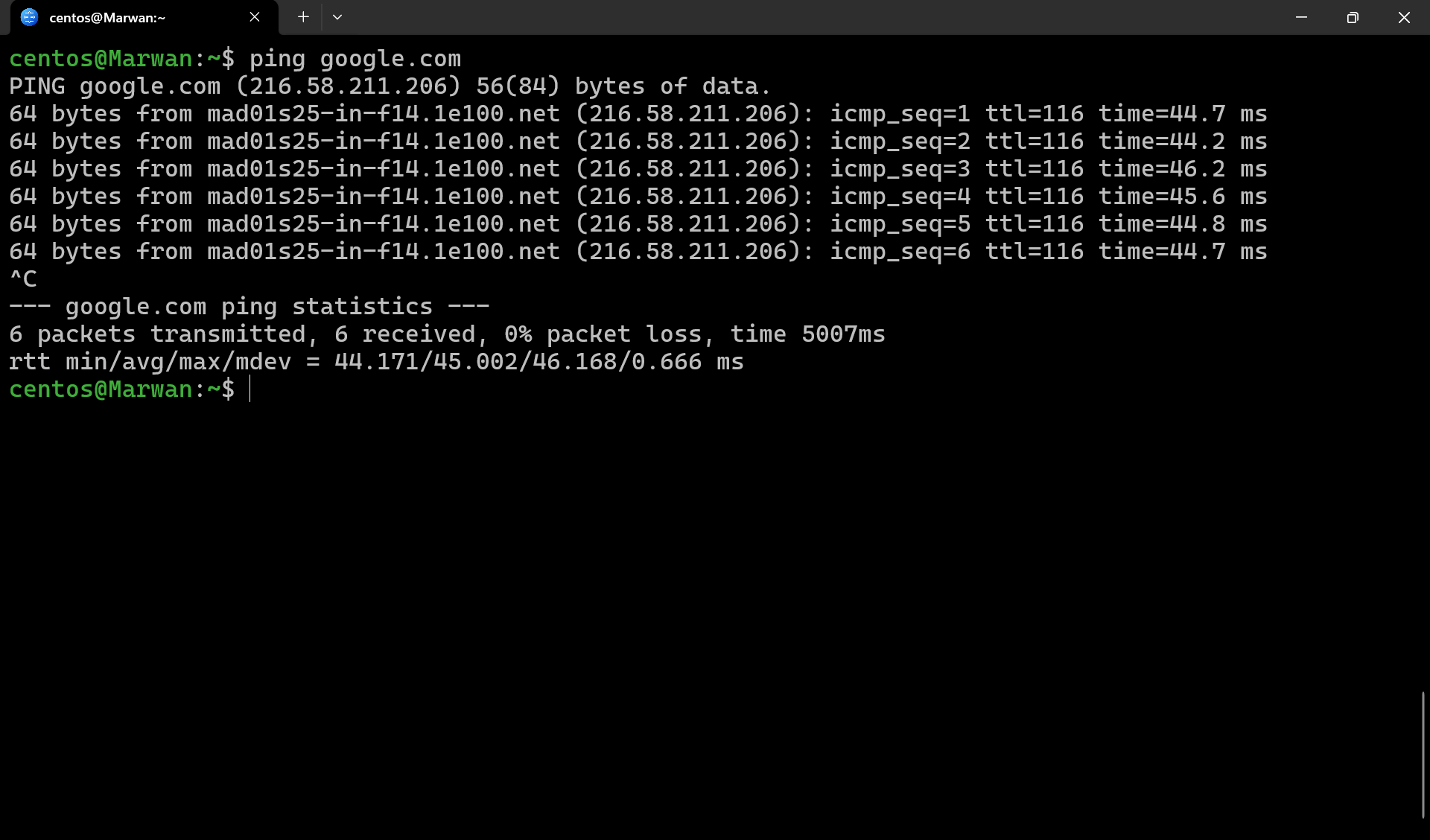

ping → Test connectivity
traceroute → Trace the path packets take

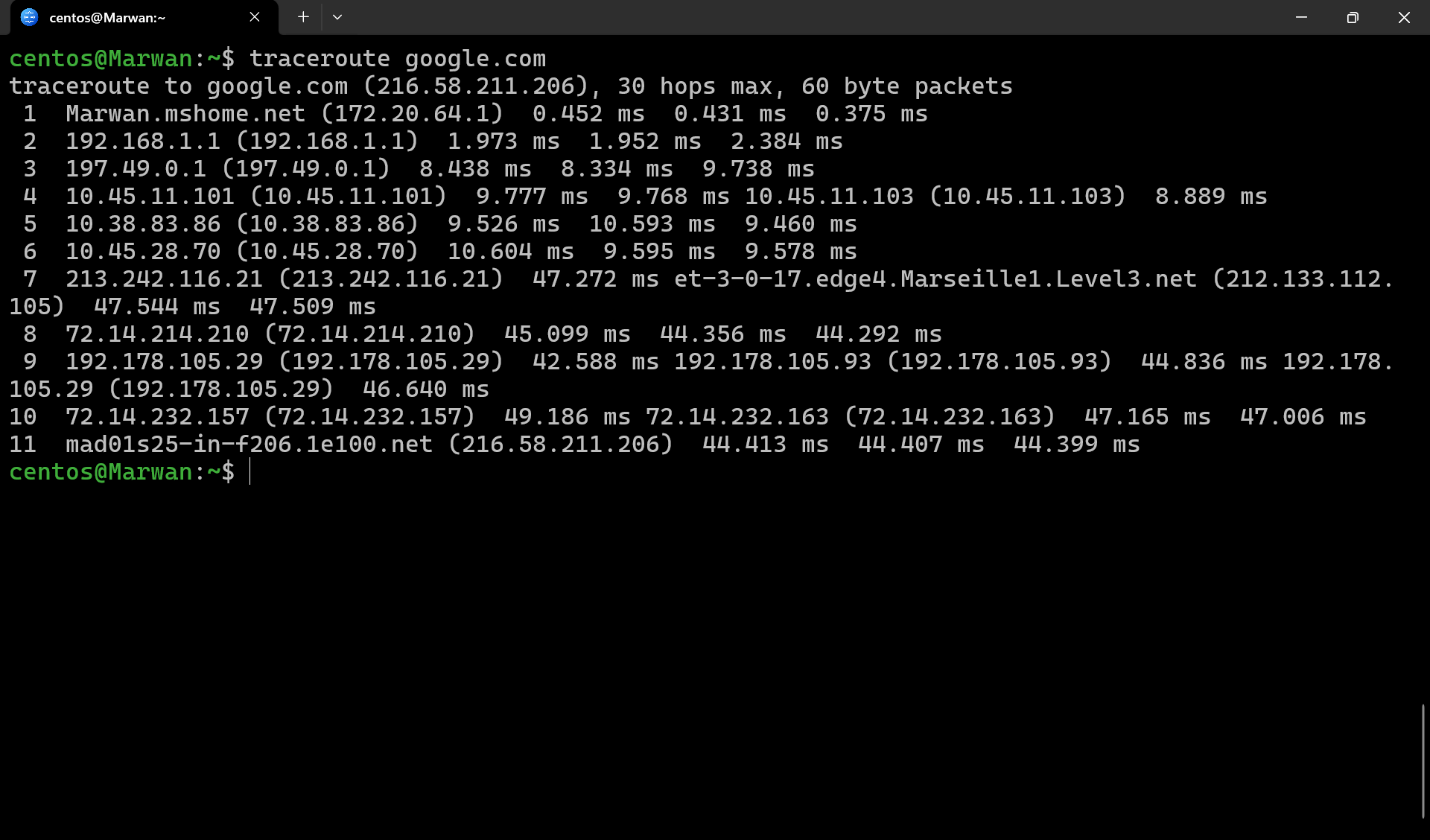

Terminal output of traceroute to google.com showing hops and latencies

curl / wget → Fetch URLs

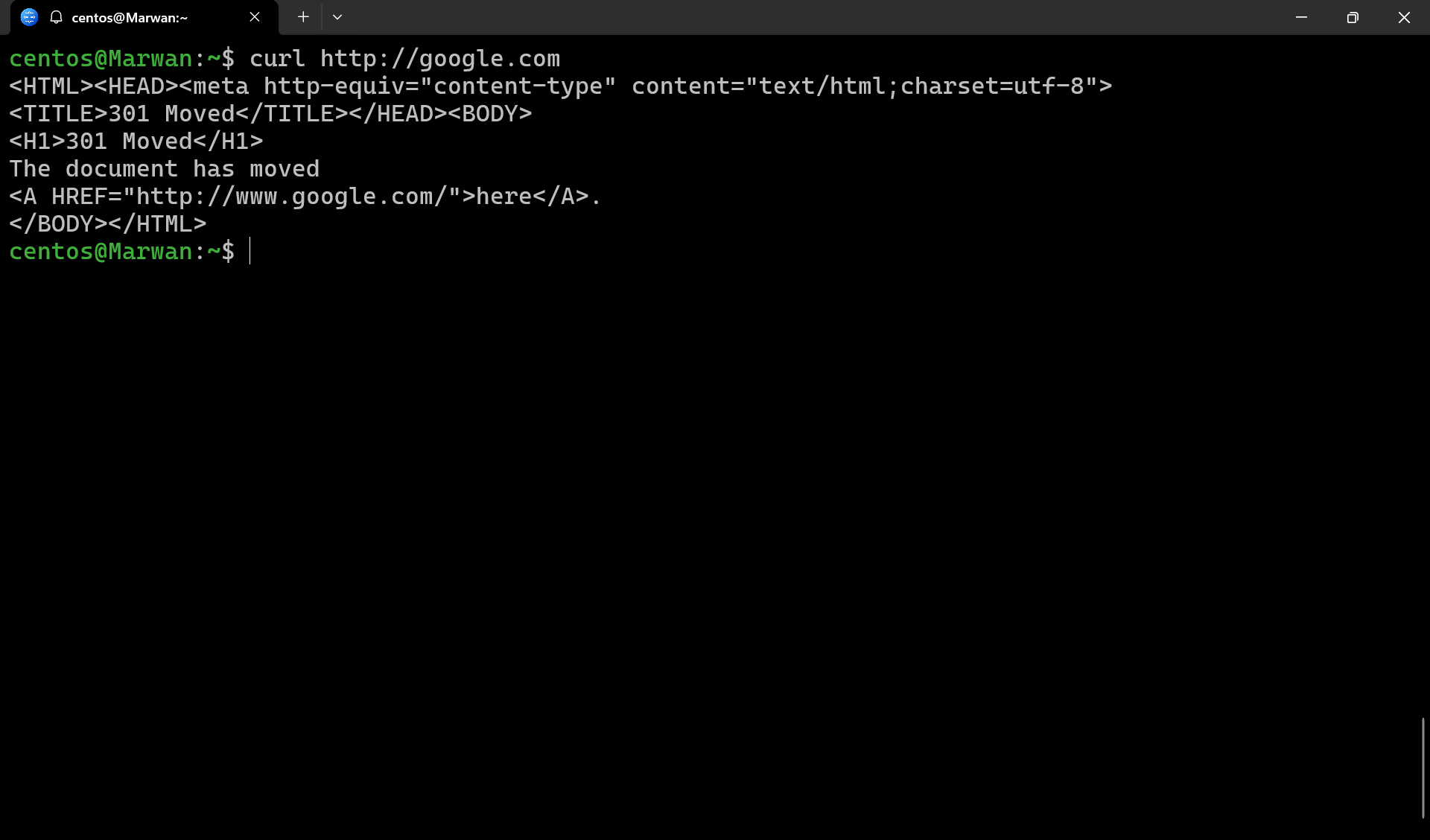

Terminal output of curl showing 301 Moved response from google.com

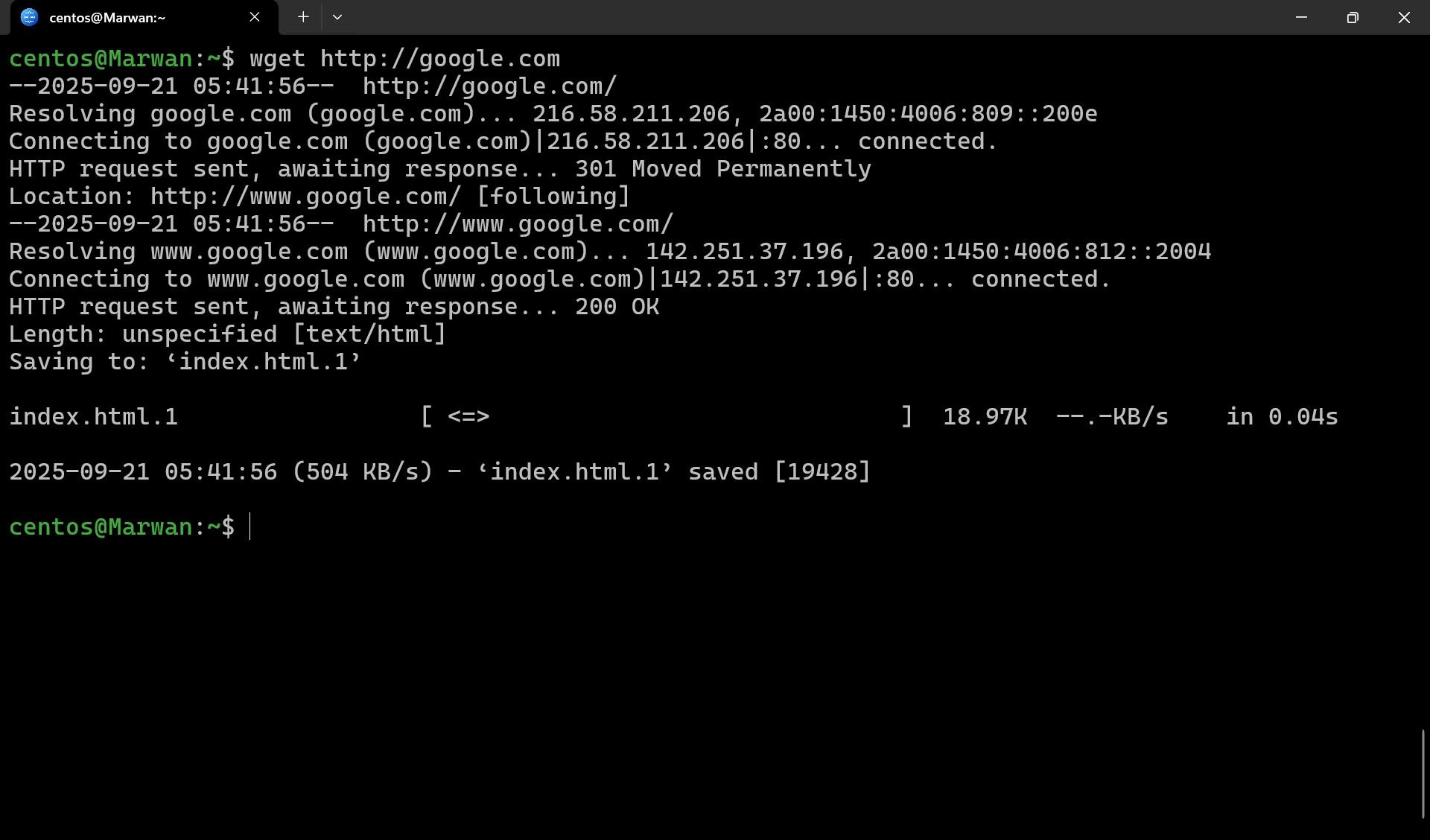

Terminal output of wget downloading google.com and saving index file

netstat or ss → View open ports and connections

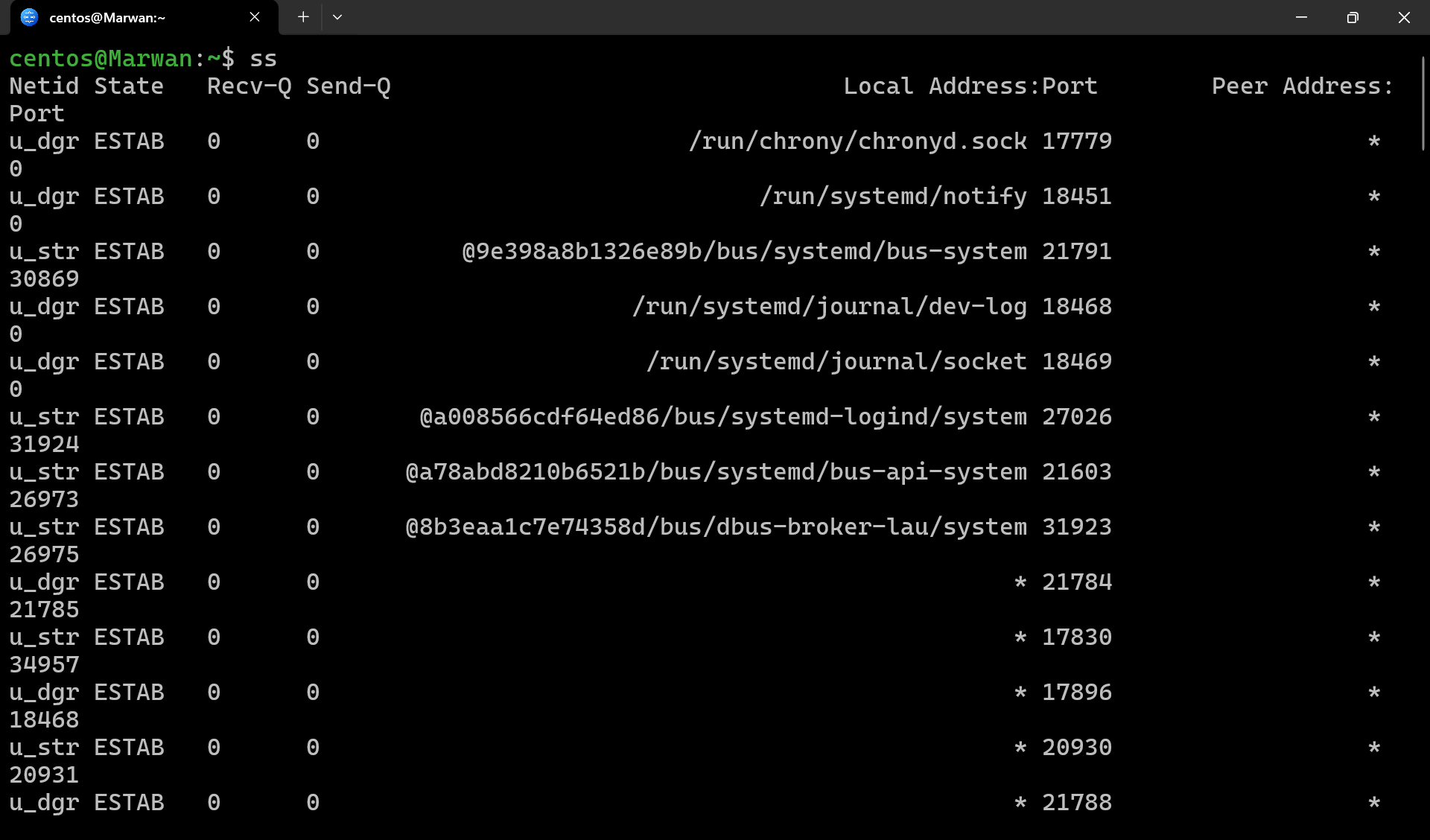

Terminal output of ss listing established system sockets and addresses

tcpdump → Capture network packets

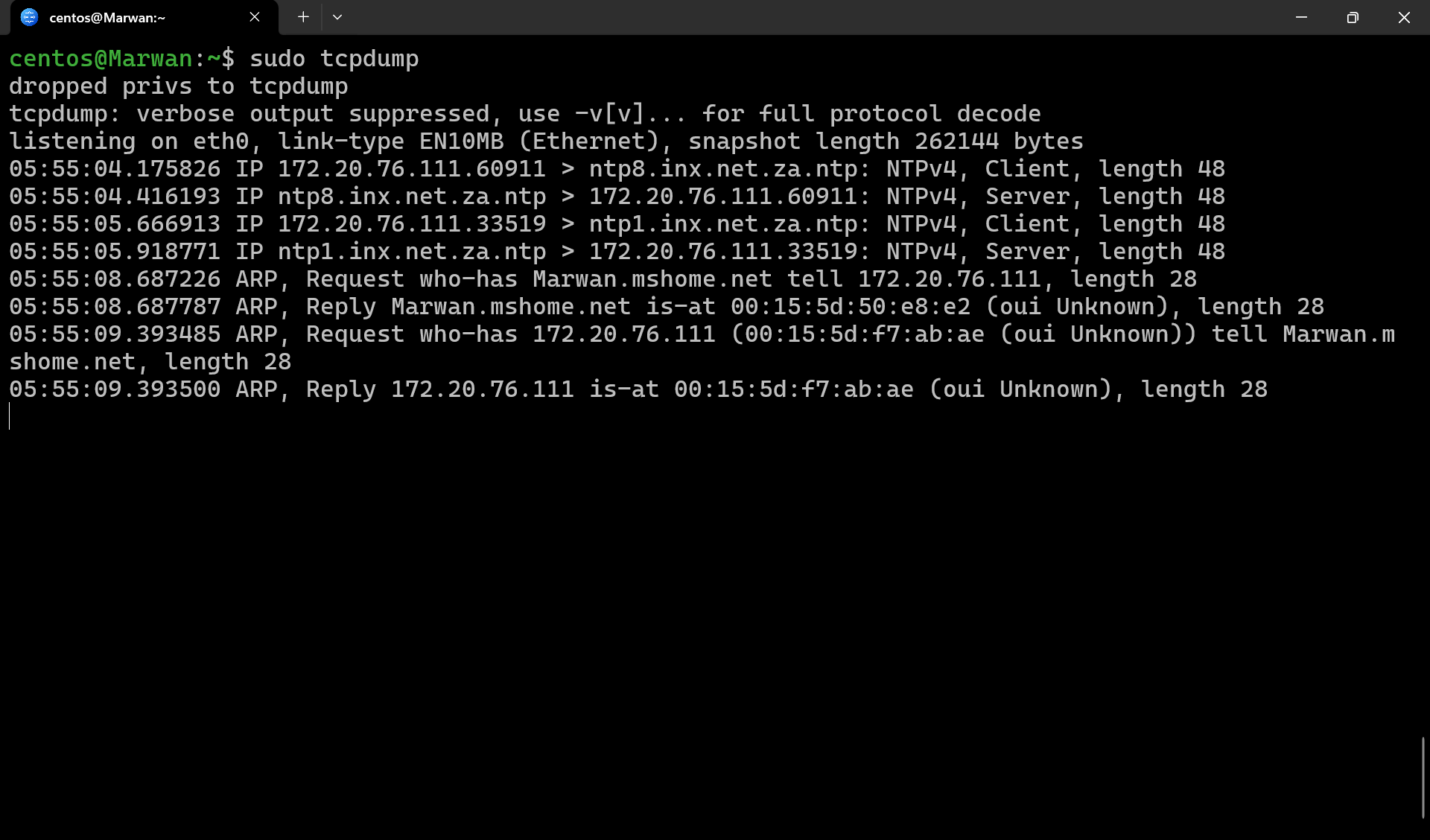

Terminal output of tcpdump capturing NTP and ARP packets on eth0

Hands-on Labs

Learning networking in Linux is best done through practice. Below are some labs you can try on your own machine or a cloud VM.

🟢 Lab 1: Check and Configure Network Interfaces (Beginner)

List all network interfaces:
```
ip link show
```
Display IP addresses:
```
ip addr show
```
Assign a temporary IP address to an interface (replace eth0 with your interface):
```
sudo ip addr add 192.168.1.100/24 dev eth0
```
Test connectivity:
```
ping -c 4 8.8.8.8
```

Goal: Understand how to view and configure basic network settings.

🟡 Lab 2: Explore Routing and Gateways (Intermediate)

Show your routing table:
```
ip route show
```
Add a new route (example to reach 10.0.0.0/24 via gateway 192.168.1.1):
```
sudo ip route add 10.0.0.0/24 via 192.168.1.1
```
Verify connectivity with ping or traceroute:
```
traceroute google.com
```
Remove the route when finished:
```
sudo ip route del 10.0.0.0/24
```

Goal: Learn how Linux decides where to send packets.

🔴 Lab 3: Network Diagnostics with `ss` and `tcpdump` (Advanced)

Check active listening ports:
```
ss -tuln
```
Start a simple Python HTTP server on port 8080:
```
python3 -m http.server 8080
```
Verify it’s running:
```
ss -tuln | grep 8080
```
Capture packets on your interface (replace eth0):
```
sudo tcpdump -i eth0 port 8080
```
Open another terminal and access:
```
curl http://localhost:8080
```
You should see HTTP requests in tcpdump.

Goal: Get comfortable analyzing real network traffic.

Conclusion

Linux networking fundamentals—interfaces, IP addressing, routing, DNS, and firewall rules—form the foundation of system administration and DevOps. By practicing these labs, you’ll strengthen both your theory and hands-on troubleshooting skills.
